Micro Mill - Drill Tail Bits

Micro Mill - Drill Tail Bits
Micro Mill - Drill Tail Bits
Price And Quantity
  • 10
  • Piece/Pieces
    Product Description

    Customers can contact Taiwan Microdrill Co., Ltd. To meet their requirement for all essential tools required in machine room of several industries, from automobile, aerospace, electrical to electronic. The offered Micro mill - drill tail bits is suitable for several milling applications, like face milling, profile milling, and tracer milling. It can be used to perform milling processing on material, such as SS, engineering plastic, carbon steel, acrylics, aluminum, copper, and carbon steel. The cutting diameter Ø (mm) ranges from 0.3 ~ 0.5mm to 2.6 ~3.0mm. The cutting length L (mm) one can achieve with this engraving drill ranges from 3Ø to 9mm. While the Point Angle° possible is 130°. In general, the flute length of Drill Tail Mill is 3 times as diameter.

    Customization Facility

    The diameter and cutting length of this tool can be customized. We can also customize neck length, neck diameter and point angle upon request.




    Cutting Diameter Ø (mm) Cutting length (mm) Point Angle°
    0.3 ~ 0.5 mm 3Ø 130°
    0.6 ~ 1.0 mm 3Ø 130°
    1.1 ~ 1.5 mm 3Ø 130°
    1.6 ~ 2.0 mm 8 mm 130°
    2.1 ~ 2.5 mm 8 mm 130°
    2.6 ~ 3.0 mm 9 mm 130°

    * Cutting Length L (mm) = 3Ø (3 Times Cutting Diameter).
    * Customize our drill and mill’s cutter length (L1), neck length (L2), neck diameter (Ø 2) and point angle (θ) for your request.

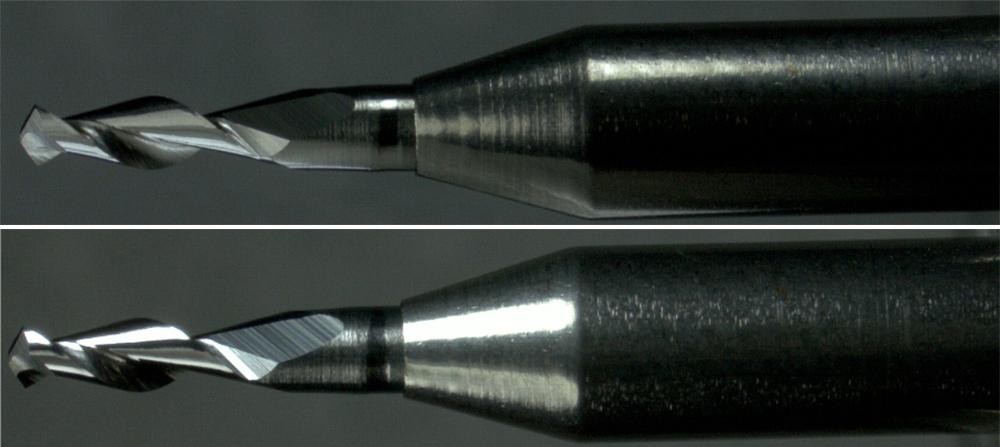

    Micro Mill - Drill Tail Bits 0.7 x 2.1 L
