Micro Mill Square End Mill is a micro cutting tool with a small cutting diameter. Operations that can be performed by using this micro cutting tool used mainly on CNC machines are drilling, milling, engraving and profiling. This kind of micro mill (square end mill), as the name implies, is available in square end geometry. This micro mill is suitable to be used for processing applications, such as cemented carbide including steel and aluminum; as well as high hardness materials with a hardness over 60 HRC.
Features of Micro Mill Square End Mill:1) Get this professional and high quality tool in several sizes to suit your precision industry.
2) The concentricity of cutting edge and shaft of micro mill are controlled within +5 ~ -5 um (+0.005 ~ -0.005 mm).
3) It can be used to drill copper, SS, carbon steel, engineering plastic, acrylics, aluminum, inorganic material and so on.
4) Micro grain tungsten carbide rods sourced from companies in Europe and Japan were used as standard materials.
5) DHL Express Worldwide or Amazon Fulfilment will deliver your consignment at your place within three working days, irrespective of your location. We delivery time is not applicable for customers in remote locations.
One can also use this Micro mill (Square End Mill) for milling applications, like:
* Profile milling
* Tracer milling
* Face milling
We can customize the size and flute length as per your request.
Micro Mill Square End Mill Size Chart:
|Cutting Diameter (mm)||Cutting Length L (mm)||Cutting Diameter (mm)||Cutting Length L (mm)|
|0.05 ~ 0.08||3||0.30 ~ 0.45||3|
|0.08 ~ 0.10||3||0.50 ~ 0.80||3|
|0.10 ~ 0.15||3||0.85 ~ 1.20||3|
|0.15 ~ 0.20||3||1.2 ~ 1.9||3|
|0.20 ~ 0.30||3||2.0 ~ 3.0||3|
* Cutting Length L (mm) = 3 (3 Times Cutting Diameter).
* Provide each 10 um (0.01 mm) a specification.
* Customize our Spotting Drill cutter length (L1), neck length (L2), neck diameter(2) and point angle (Â¸) for your request.

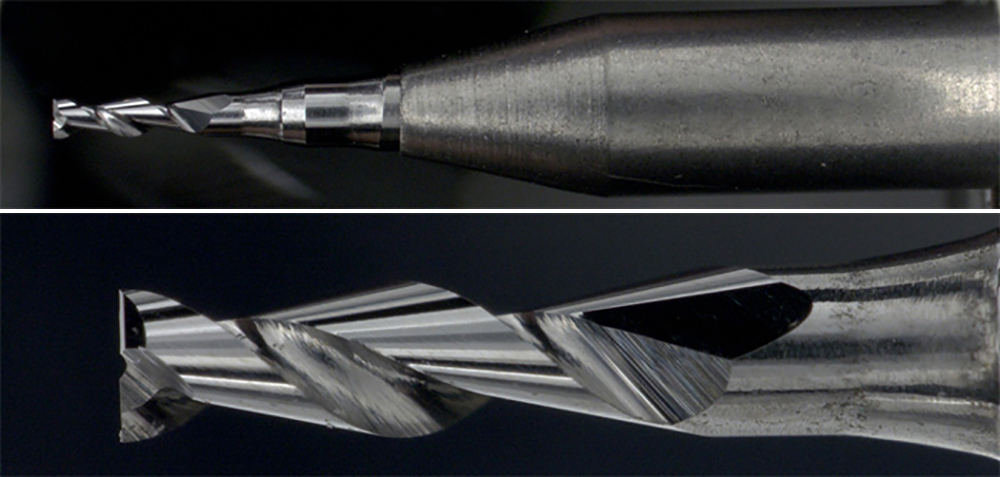

Micro Mill â Square End Mill 0.05 x 0.15 L
Micro Mill â Square End Mill 0.7 x 2.1 L
